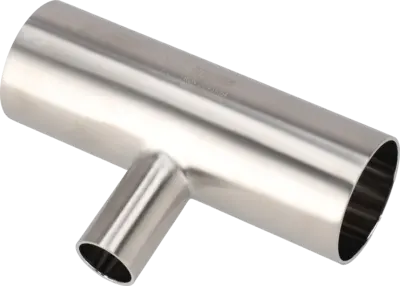

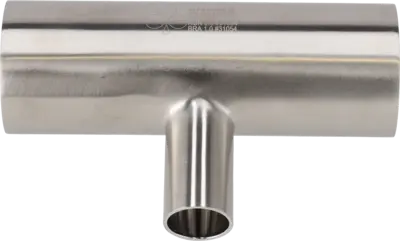

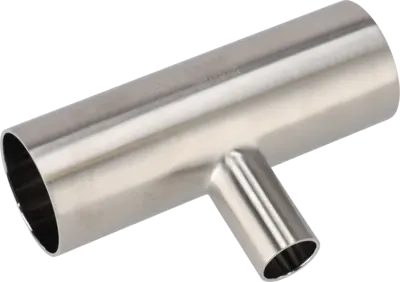

B7RWWW-1 1/2 X 3/4-316L-PM.

B7RWWW-1 1/2 X 3/4-316L-PM. - BPE WELD RED T 15RAEP/POL SF4
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5036
HS Code:
7307230090
Item number:
9634001068
Delivery time:
1-3 days
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees
  • Size: 1.5"
  • Second Size: 0.75"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Weld ends
  • Standard: ASME BPE
  • Design: B7RWWW
  • Item Weight: 0.23
Price:
Login to view price
A: 60.30
B: 60.30
OD/ID x t: 38.10/34.80 x 1.65
OD1/ID1 x t1: 38.10/34.80 x 1.65
OD2/ID2 x t2: 19.05/15.75 x 1.65
