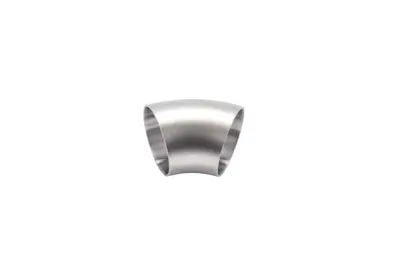

BEND 45 BS DN20 HSF2 1.4404 - DIN 11852
BEND 45 BS DN20 HSF2 1.4404 - DIN 11852
Roll over image to zoom in Click on image to zoom
BEND 45 BS DN20 HSF2 1.4404 - DIN 11852
BEND 45 BS DN20 HSF2 1.4404 - DIN 11852

BEND 45 BS DN20 HSF2 1.4404 - DIN 11852

Manufacturer:Alfa Laval
Item number: 9615227321
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:1-3 days
  • Type: Bend 45
  • Design: BS
  • Standard: DIN 11852 and EN 10374-A
  • Material: 1.4404 (316L)
  • Size: DN20
  • Finish: HSF2 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Item Weight: 0.035 kg
Price:
Login to view price
L: 28.28
R (mm): 40
OD/ID x t: 23.00/20.00 x 1.50
