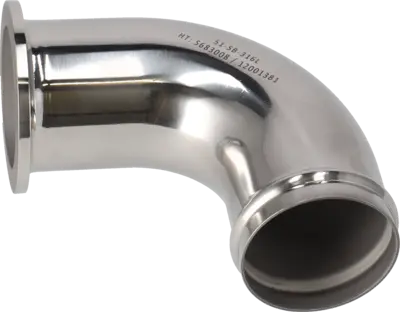

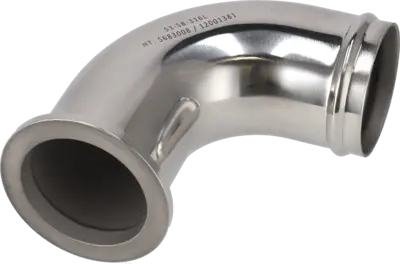

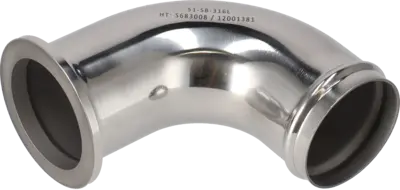

HOSE LINER-90 63.5-SB-316L

HOSE LINER-90 63.5-SB-316L - HOSE LINER/CL-ISO2037
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5018
HS Code:
73072310
Item number:
191607
Delivery time:
On request
  • Range: Bends
  • Product Model: ISO EN 10357-D Hose Liner Bends
  • Size: 63.5 mm
  • Material: 1.4404 (316L)
  • Finish: SB (ID=0.8/OD=1.0)
  • Connection Type: Tri-Clamp and Hose
  • Standard: ISO 2037
  • Design: Bend with hose and liner
  • Item Weight: 0.52
Price:
Login to view price
A: 114.00
E: 10.00
L: 105.00
OD1/ID1 x t1: 63.50/60.30 x 1.60
