B9WWWW-3/4-316L-PM

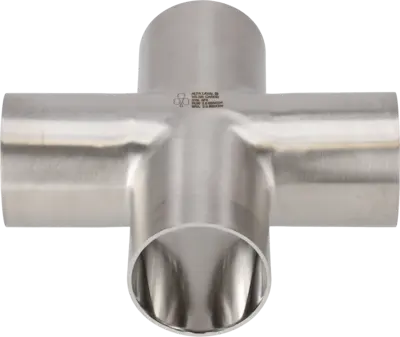

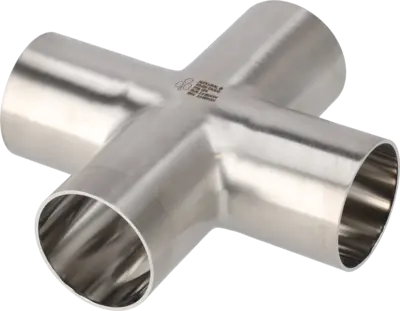

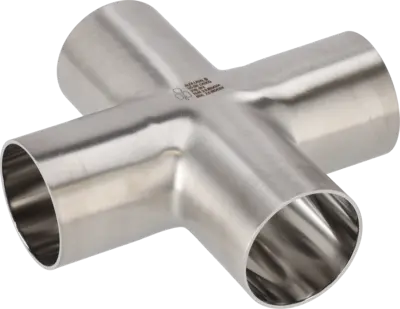

B9WWWW-3/4-316L-PM - BPE WELD CROSS 15RAEP/POL,SF4
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5036
HS Code:
7307230090
Item number:
9634000829
Delivery time:
On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Crosses
  • Size: 0.75"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Weld ends
  • Standard: ASME BPE
  • Design: B9WWWW
  • Item Weight: 0.14
Price:
Login to view price
A: 50.80
OD/ID x t: 19.05/15.75 x 1.65
OD1/ID1 x t1: 19.05/15.75 x 1.65
