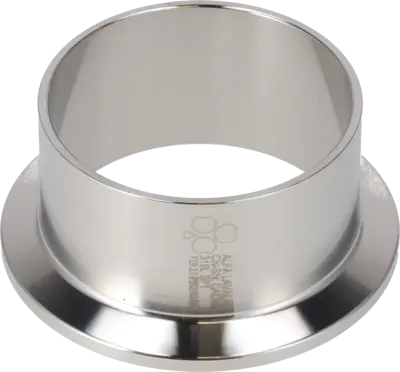

L14AM-4-316L-SF1 Type B

L14AM-4-316L-SF1 Type B - CLAMP FERRULE 101.6MM
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5056
HS Code:
7307290090
Item number:
9615266806
Delivery time:
On request
  • Range: Ferrules
  • Product Model: Tri-Clover BPE Ferrules
  • Size: 4"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Tri-Clamp and Weld
  • Standard: ASME BPE
  • Design: L14AM
  • Item Weight: 0.34
Price:
Login to view price
A: 28.58
B: 118.92
OD/ID x t: 101.60/97.38 x 2.11
OD1/ID1 x t1: 101.60/97.38 x 2.11
