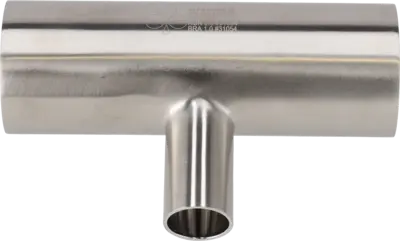

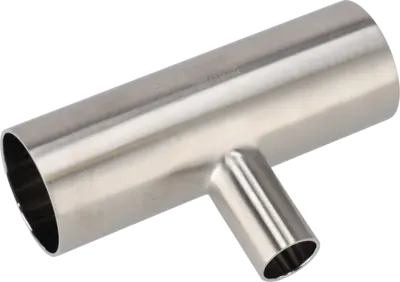

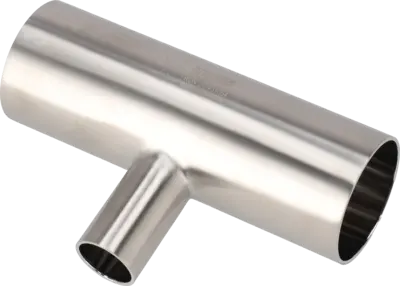

B7RWWW-4 X 3-316L-PM

B7RWWW-4 X 3-316L-PM - BPE WELD RED T 15RAEP/POL SF4
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5036
HS Code:
7307230090
Item number:
9634001131
Delivery time:
1-3 days
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees
  • Size: 4"
  • Second Size: 3"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Weld ends
  • Standard: ASME BPE
  • Design: B7RWWW
  • Item Weight: 1.45
Price:
Login to view price
A: 104.80
B: 98.40
OD/ID x t: 101.60/97.38 x 2.11
OD1/ID1 x t1: 101.60/97.38 x 2.11
OD2/ID2 x t2: 76.20/72.90 x 1.65
