B7RMPS-2x1.5-316L-SF4

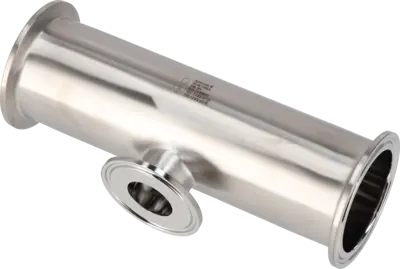

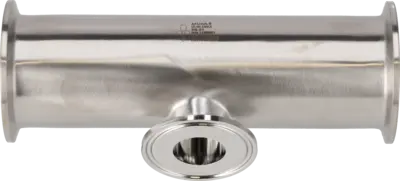

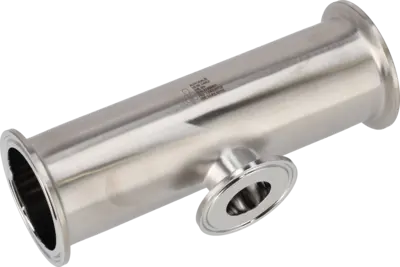

B7RMPS-2x1.5-316L-SF4 - ASME BPE TEE REDUCING TCxTCxSRTC PM DT-4.1.2-9
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5037
HS Code:
7307290090
Item number:
9634003973
Delivery time:
1-3 days
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees Short
  • Size: 2"
  • Second Size: 1.5"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 0.47
Price:
Login to view price
A: 85.70
B: 41.30
OD/ID x t: 50.80/47.50 x 1.65
OD1/ID1 x t1: 50.80/47.50 x 1.65
OD2/ID2 x t2: 38.10/34.80 x 1.65
