B7RMPS-0.75x0.5-316L-SF1

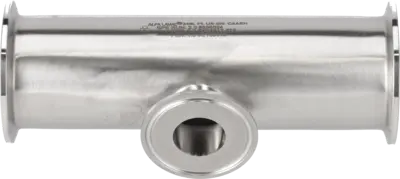

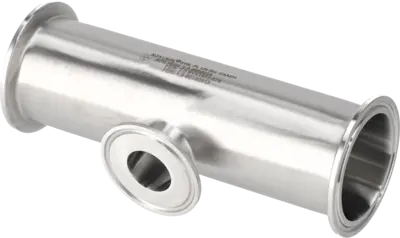

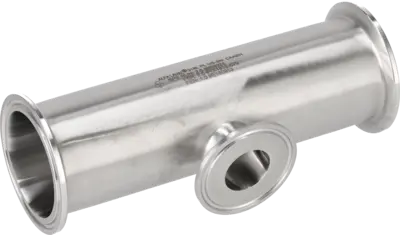

B7RMPS-0.75x0.5-316L-SF1 - ASME BPE TEE REDUCING TCxTCxSRTC PL DT-4.1.2-9
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5037
HS Code:
7307290090
Item number:
9634003943
Delivery time:
On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees Short
  • Size: 0.75"
  • Second Size: 0.5"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 0.18
Price:
Login to view price
A: 63.50
B: 25.40
OD/ID x t: 19.05/15.75 x 1.65
OD1/ID1 x t1: 19.05/15.75 x 1.65
OD2/ID2 x t2: 12.70/9.40 x 1.65
