B7RMPS-3x0.75-316L-SF1

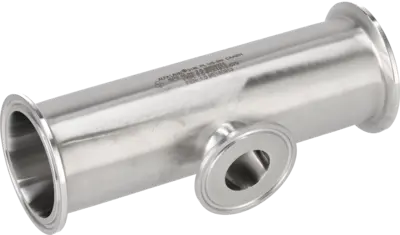

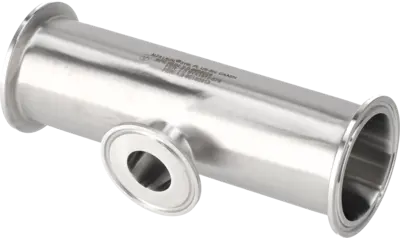

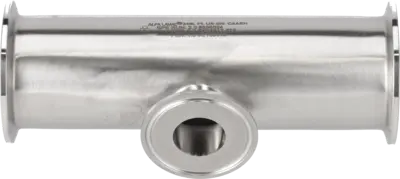

B7RMPS-3x0.75-316L-SF1 - ASME BPE TEE REDUCING TCxTCxSRTC PL DT-4.1.2-9
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5037
HS Code:
7307290090
Item number:
9634003959
Delivery time:
On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees Short
  • Size: 3"
  • Second Size: 0.75"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 0.78
Price:
Login to view price
A: 98.40
B: 54.00
OD/ID x t: 76.20/72.90 x 1.65
OD1/ID1 x t1: 76.20/72.90 x 1.65
OD2/ID2 x t2: 19.05/15.75 x 1.65
