B7MPS-6-316L-PM

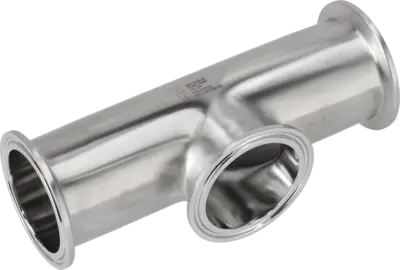

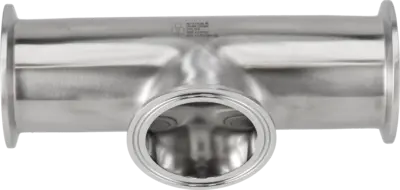

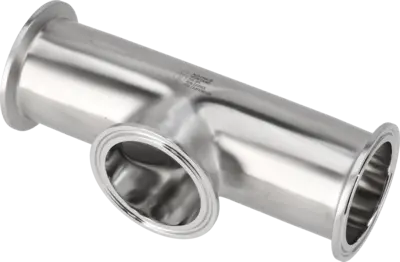

B7MPS-6-316L-PM - BPE TC S/O EQUAL T 15RAEP SF4
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5037
HS Code:
7307290090
Item number:
9634050012
Delivery time:
On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Tees Equal
  • Size: 6"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B7MPS
  • Item Weight: 0.91
Price:
Login to view price
A: 181.00
B: 117.50
OD/ID x t: 152.40/146.86 x 2.77
OD1/ID1 x t1: 152.40/146.86 x 2.77
