B7WWMS-3-316L-PL

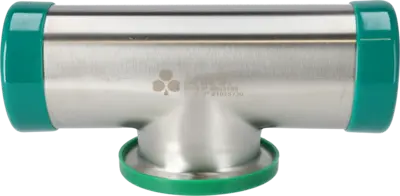

B7WWMS-3-316L-PL - BPE S/O WXTC T 20RA/POL,SF1
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5036
HS Code:
7307290090
Item number:
9634002625
Delivery time:
1-3 days
  • Range: Tees
  • Product Model: Tri-Clover BPE Tees Short
  • Size: 3"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld and Weld and Short Tri-Clamp
  • Standard: ASME BPE
  • Design: B7WWMS
  • Item Weight: 0.68
Price:
Login to view price
A: 85.70
B: 54.00
OD/ID x t: 76.20/72.90 x 1.65
OD1/ID1 x t1: 76.20/72.90 x 1.65
