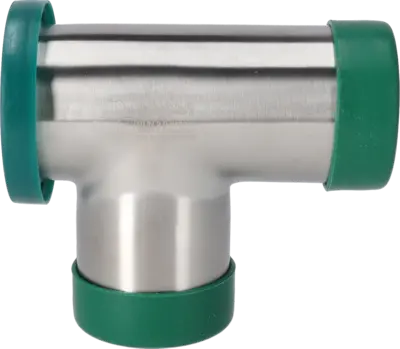

B7WMSW-1 1/2 316L-PL

B7WMSW-1 1/2 316L-PL - BPE EQUAL T WXTCXW 20RA SF1
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5036
HS Code:
7307290090
Item number:
9634037722
Delivery time:
1-3 days
  • Range: Tees
  • Product Model: Tri-Clover BPE Tees Short One Side
  • Size: 1.5"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld and Short Tri-Clamp and Weld
  • Standard: ASME BPE
  • Design: B7WMSW
  • Item Weight: 0.27
Price:
Login to view price
A: 35.10
B: 60.30
OD/ID x t: 38.10/34.80 x 1.65
OD1/ID1 x t1: 38.10/34.80 x 1.65
