B7WMSW-1/2-316L-PM

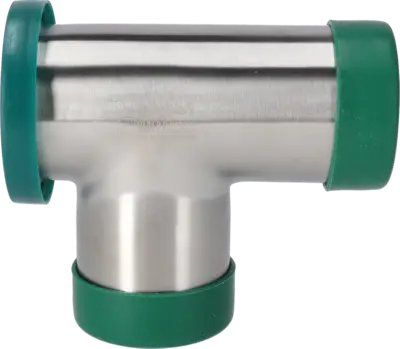

B7WMSW-1/2-316L-PM - BPE EQUAL T WXTCXW 15RAEP SF4
Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5036
HS Code:
7307290090
Item number:
9634037728
Delivery time:
On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Tees Short One Side
  • Size: 0.5"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Weld and Short Tri-Clamp and Weld
  • Standard: ASME BPE
  • Design: B7WMSW
  • Item Weight: 0.15
Price:
Login to view price
A: 22.40
B: 47.60
OD/ID x t: 12.70/9.40 x 1.65
OD1/ID1 x t1: 12.70/9.40 x 1.65
